intelligent air shower system with automatic swing door for large scale semiconductor factory

Company Advantages
1. HAOAIRTECH air shower unit has been verified to meet various quality requirements. It has been tested to work properly under various conditions, even harsh conditions. A sample of the product can be offered for the confirmation of quality
2. The product is getting an increasing application in the market. The product prevents airborne particles and microbes from entrance
3. The overall quality of this product is ensured by our professional QC team. The product ensures the smooth refreshing breath of users
4. The product has consistent quality, stable performance, and long service life. It highly conforms to the dustless workshop management standard

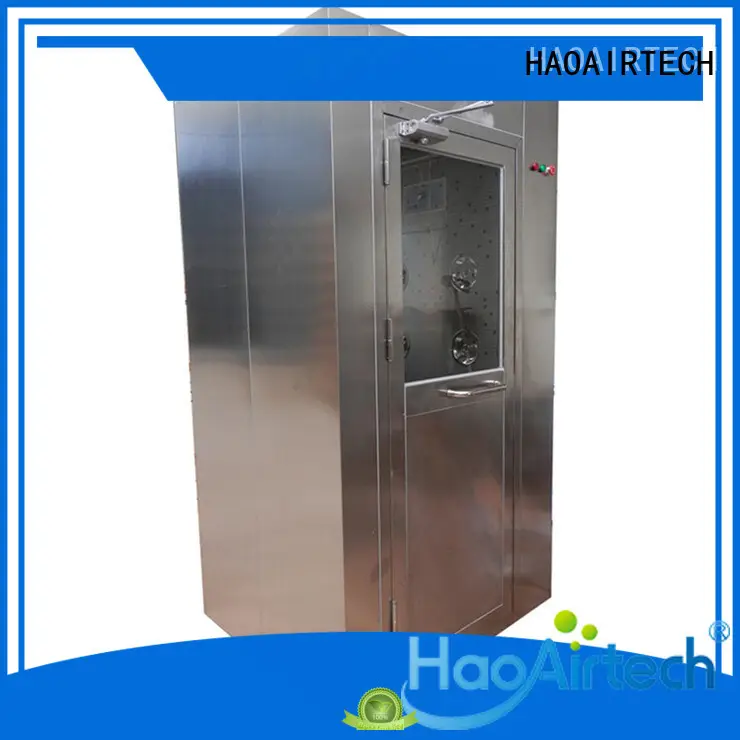

Stainless Steel Air Shower

There are two main materials available for inside and outside air shower cabniet:  steel with coated-power  and stainless steel.

(1) steel With Power Coated Steel:

They are more cost-effective than the stainless models. But they can be less durable. The coating is subject to chipping under heavy use. However, as with stainless steel, they are easily wiped clean and require little in the way of other maintenance. Choose all stainless steel vertical air shower when there is acid gas or humid factory environment on site.

(2).Stainless Steel

Its surface is resistant to both rust and stains. It is not coated, so there is nothing to chip. The disadvantage of stainless steel is its price is higher than coated power steel.

201 Stainless Steel is the most cost-effective stainless steel material, cheap, but easy to rust; 304 Stainless Steel is the most common and widely used stainless steel material, not easy to rust, good quality, relatively high price; 316 Stainless Steel is an imported material, used in some high-end equipment, such as aerospace, food machinery and other fields, the price is high.

 Air Shower Features :

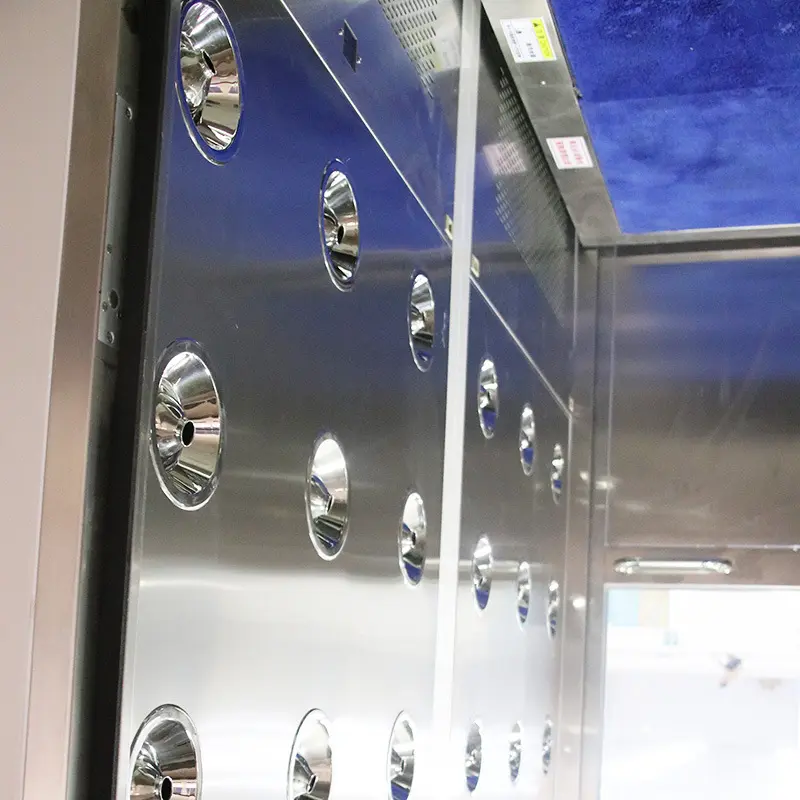

1.Three side blowing, can more fully remove fine particles

2.Made of stainless steel 304/201 material, resistant to wear and corrosion, long service life.

3.Passed CE certification

4.Other types of air showers can also be customized

Parameter:

HA-AS1300  cleanroom Air Shower
MODEL	HA-AS1300P2
External size (mm) (WXDXH)	1300x2000x2180mm
Work zone (mm) (WXDXH)	800x1930x1910mm
Persons per cycle	2-4 Person/time
Air shower Duration	Factory set at 12 second (adjustable)
Air shower direction	Three side with blowing
Material	1: Entirety SUS304
Control system	1: microelectrionic control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark.
The power of Fan	380V/50HZ/750W
Air flow of fan(m3/h)	1200m3/h
Fan run (r/min)	2800r/min
Nozzle in stain less steel	24 pcs
Wind speed(m/s)	23-29m/s
Noise level(dB)	<62dB
LED Fluorescent Lamp	20wx2
HEPA Filter	H13
Pre-filter	G4
Electrical	Power supply380v/50Hz
Net power(kw)	0.75X4 kw

stainles Steel Air Shower Application :

Our client for oversea :

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is working every day to refine our materials formulation to deliver the best air shower system available.
2. We care for the environment. We use environmentally friendly technologies in our production activities to minimize the possible adverse effects on the environment.
