honeycomb v bank filter with granular carbon online HAOAIRTECH

Company Advantages
1. The production of HAOAIRTECH v bank filter follows the normative conditions.
2. The product performs stably without little vibration. The design helps balance itself and keep stabilized during the dehydrating process.
3. HAOAIRTECH has enough capability to produce bulk production of chemical filter in a high efficient way.

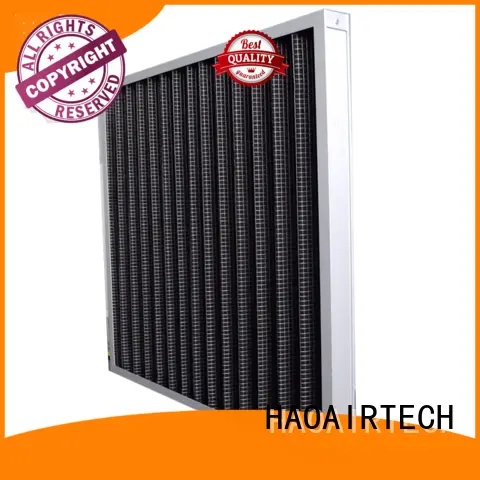

          Pleats activated carbon filter is mainly made of activated carbon cotton as filter media material, with folding shape to increase the filter area, metal wire mesh clamping or built-in metal keel framework support, and metal outer frame. This kind of filter has great adsorption capacity and can effectively remove a large amount of ozone and harmful gases.



          The pleats activated carbon filter media material make the high adsorptive capacity activated carbon raw material impregnated in the hexyl ester foam and bound it into a sheet like adsorbent.

          Due to the porous hexyl ester, so it with gas permeability and the shape stability performance . Because the powder activated carbon contact with the adsorbed substance, so  the contact area is widely and the adsorption speed very fast.  Hexyl formate has the same excellent dust collection effect.





size   (W*H*D)	Rate Air   Flow(m3/h)	Primary   Resistance	Media Area (g)	Odor Removal   Efficiency
592x592x21	1100	40pa	0.9	70%
287x592x21	550	40pa	0.44
490x592x21	950	40pa	0.8
592x592x46	1200	40pa	0.9
287x592x46	600	40pa	0.44
490x592x46	1000	40pa	0.8
592x592x50	1300	40pa	1.06
287x592x50	704	40pa	0.56
490x592x50	1173	40pa	0.93

Equilibrium Adsorption of Poisonous Gases by Folded Activated Carbon Filter (mg/g)

toluene	xylene	formaldehyde	methanol	Ethyl ether	chloroform	acetone	gasoline	ammonia	Hydrogen sulfide	sulfur dioxide	hydrogen chloride
320	290	320	260	470	530	230	290	290	1060	830	450



          1:  It is suitable for industrial ventilation system to remove odors and harmful gases.



    2： Special activated carbon materials such as volatile organic compounds, acidic, alkaline gases, formaldehyde, mercury vapor and radioactive gases can be provided according to actual needs.

Company Features
1. The development of chemical filter in Guangzhou HaoAir Purification Technology Co.,Ltd. has embarked on a fast track and is in a leading position in the world.
2. It turns out that HAOAIRTECH is experienced in introducing high technology.
3. active carbon air filter thinks that service is as important as quality of Gas-Phase Air Filter. Check it! To establish the service concept of v bank filter is the base of Guangzhou HaoAir Purification Technology Co.,Ltd.'s work. Check it! One major tenet is tochemical filtration . Check it!
