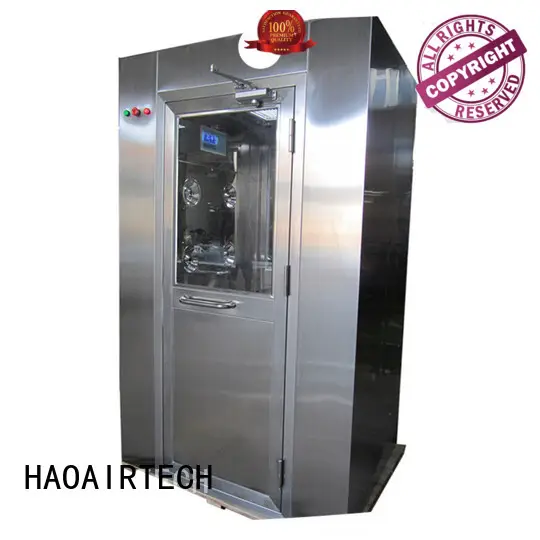

HAOAIRTECH sus air shower system with top side air flow for ten person

Company Advantages
1. HAOAIRTECH air shower nozzle uses the high-grade basic materials in complete compliance with industry standards.
2. air shower system can offer moderate air shower nozzle and professional quality effect.
3. With many international certifications, the quality of the product is assured.
4. The product is popularly used for various applications.
5. This product is worthy of customers' trust with a good reputation in the industry.

Product Features:

External Material: stainless steel304 (t=1.0)

Inside Material: stainless steel304 (t=1.0)

External size: 1300*1000*2180mm

Internal size: 800*930*1910mm

Sus nozzle: 16pcs

Blowing way: 3 side (left, right and top)

Air speed: more than 25m/s

Door: Electric Interlocking in both side

  Cleanroom Air Shower Draw :



Schneider brand E-STOP button for Cleanroom Air Shower :

Products Parameter:

MODEL		HA-AS1300P1	HA-AS1300P2	HA-AS1300P3
External size (mm) (W*D*H)		1300x1000x2180mm	1300x2000x2180mm	1300x3000x2180mm
Work zone (mm) (W*D*H)		800x930x1910mm	800x1930x1910mm	800x2930x1910mm
Persons per cycle		1-2 person	2-4 person	3-6 person
Material  （Option）		1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) 4:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm)
Control system		1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Three side blowing with Human voice prompt system. 5: with CE remark.
The power of fan		380V/50HZ/0.75KW (2 set)	380V/50HZ/0.75KW (4 sets)	380V/50HZ/0.75KW  (6sets)
Air flow of fan(M3/h)		1500	1500	1500
Fan run (r/min)		2800	2800	2800
Nozzle in stain less steel		16 pcs	32 pcs	48pcs
Wind speed(m/s)		>25m/s
Noise level(dB)		<75dB
HEPA FILTER	Size(mm)	630X630X80mm (2 sets)	630X630X80mm (4 sets)	630X630X80mm (6 sets)
	Efficiency (%)	99.995% @ 0.3um mini-pleats HEPA Air Filter
	Air velocity	1000(M3/h)
	Initial resistance(pa)	<180pa
Pre-filter	Size(mm)	775x380x17	775x380x17	775x380x17
	Efficiency (%)	75% @ 0.5um	75% @ 0.5um	75% @ 0.5um
		G3	G3	G3
	resistance(pa)	<30 Pa	<30Pa	<30 Pa
parameter	Power supply	380v/50HZ 3P	380v/50HZ 3P	380v/50HZ 3P
	Net power(kw)	1.5 kw	3kw	4.5 kw
packing size (mm)		1350x1200x2250mm	1350x2200x2250mm	1350x3200x2250mm
Packing material		Standard Export Poly wood Packing(Fumigant free material)
Weigh		320kgs	650kgs	a960kgs

Application :

Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.
