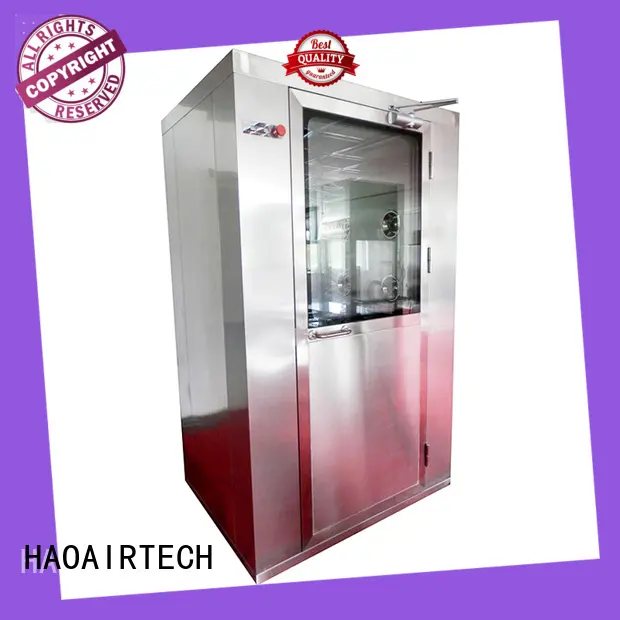

HAOAIRTECH sus air shower system channel for large scale semiconductor factory
1. Specific tests have been conducted on HAOAIRTECH air blower at entrance . These tests include tensile and tear strength testing, abrasion resistance testing, dimensional stability testing, stain resistance testing, etc.
2. The product has enough hardness. The main body adopts high performance composite fiberglass material, which is made by hand-made paste.
3. The product is less likely to irritate the allergic reactions. Sometimes, the preservatives could be harmful. But these preservatives contained are self-preserving to pose no risks on the skin.
4. This product is worthy of promotion and application.
5. The market prospect for this product is very promising.
Big air blowing fan is explosion-proof
Purification light is explosion –Proof
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 1600*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
MODEL | HA-AS1600P1 | HA-AS1600P2 | HA-AS1600P3 | |
External size (mm) | 1600x1000x2180mm | 1600x2000x2180mm | 1600x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(m3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1750x1200x2250mm | 1750x2200x2250mm | 1750x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Explosion– Proof Control Board 2: SUS Nozzle 3: Infrared Indicator 4: Per-filter 5: Power indicator 6: Emergency switch 7: Working light 8: HEPA air filter (H13 99.995%@0.3um) 9: Interlock Door, 10: Explosion –Proof Big air blower 11: Door Closer 12: Explosion–Proof purification light
Introduce:
Explosion-proof air shower rooms are widely used in enterprises that require high purification produce flammable and explosive materials, such as refineries, cutting-edge weapons producers, military enterprises, and aerospace industries. As used in the explosive industry and the use of volatile goods, enterprises must take into account the product features and safety of the customer workshop in the design of explosion-proof air shower rooms. All parts of the explosion-proof air shower room are all used with explosion-proof electrical appliances and lines to avoid the explosion of combustible gas and equipment in the customer's workshop.
/ Our Service
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
