HAOAIRTECH knife edge custom hepa filter with one side gasket for air cleaner

Company Advantages
1. The manufacture of HAOAIRTECH custom hepa filter involves the following stages: medical material and processes specification, vendor selection, detailed part design, software fine-tuning and testing, failure mode analysis, and tolerance analysis.
2. Our professional and technical personnel supervise the quality control throughout the production process, which greatly guarantees the quality of the products.
3. HAOAIRTECH has gone far ahead in the custom hepa filter industry for the finest quality service.

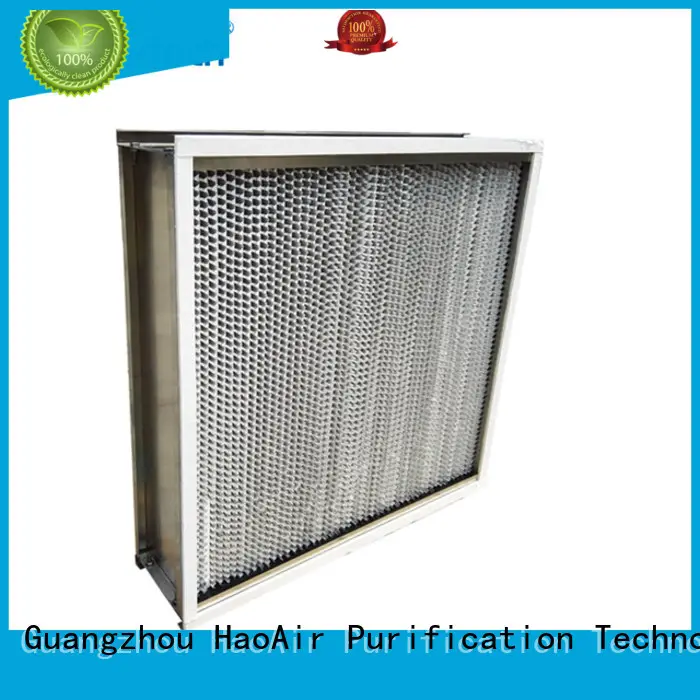

High Temp HEPA Filter

High temperature HEPA filter is an air filter that can withstand temperatures up to 250°C. It uses stainless steel as the frame and glass fiber filter paper as the filter material. Widely used in the spraying industry, oven, chemical, ultrasonic industry and other high temperature purification sites.

The Deep Pleated design uses an aluminum separator as a divider that divides the filter media and creates a airflow path tunnel.

Cleanliness level

This is similar to the normal hepa filter which achieves an efficiency rating of H13 99.97% @ 0.3micron and H14 99.995% @ 0.3 micron. Different efficiencies can be achieved using different fiberglass materials. Each High temperature HEPA filter is tested by smoke to ensure that the filter is not leaking. Packed in plastic bags to prevent long-term storage from being oxidized. A single filter is packed in carton and then secured with wooden boxes to ensure safety during transport.

Installation and Usage

Do not use any sharp objects to touch the fragile glass filter. Do not touch the glass filter material with your hand while carrying the filter. The outer frame can only be lifted by hand or machine for installation. During usage, do not raise the temperature to above 250°C in a short time directly. The best way is to increase the temperature by 50°C per hour. Finally stabilized to between 200°C and 250°C. In order to ensure the service life of the High temperature HEPA filter, it is necessary to add a primary filter, glass fiber primary air filter can be used to collect large particles of dust to enlarge high temperature HEPA filter service life.

Frame construction design

• Double turn flange

• Single turn flange

• Boxed

Dimension

• Thickness 150mm or 292mm ( 6 / 12 inch )

• 610*610*292 / 150mm ( 24*24*12 / 6 inch )

• 305*610*292 / 150 mm ( 12*24*12 / 6 inch )

Temperature

• Max temperature resistance 250°C

• If need Pharmaceutical High temperature HEPA filter 400°C, please click here

Efficiency

• F5, F6, F7, F8, F9 H10, H11, H12, H13, H14, U15 EN:1822

Airflow rate and Resistance

• for H13 Efficiency, 610*610*292mm, airflow rate is 2000CMH and pressure drop 220Pa

• for H14 Efficiency, 610*610*292mm, airflow rate is 2000CMH and pressure drop 230Pa

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is deeply trusted by all of our customers for stable quality and reasonable price over the years.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has equipped the global advanced machines.
3. Now the popularity and reputation of HaoAir Purification have been continuously improved. Check it! HAOAIRTECH adheres to the wish of being a greatly influential custom hepa filter supplier in the next future. Check it!
