HAOAIRTECH intelligence air shower system channel for pallet cargo

Company Advantages
1. HAOAIRTECH air shower system is carried out by our designers who aim to maintain and improve the lifestyle of customers by delivering the most effective and innovative wellness sauna product.
2. The properties of air shower system attain the standard requirement.
3. This product will have a marked influence on people's self-esteem and level of confidence. It makes people mentally geared to concentrate completely on what they should do.
4. This product can be an asset to those with sensitivities and allergies who are in need of green and hypoallergenic furniture.

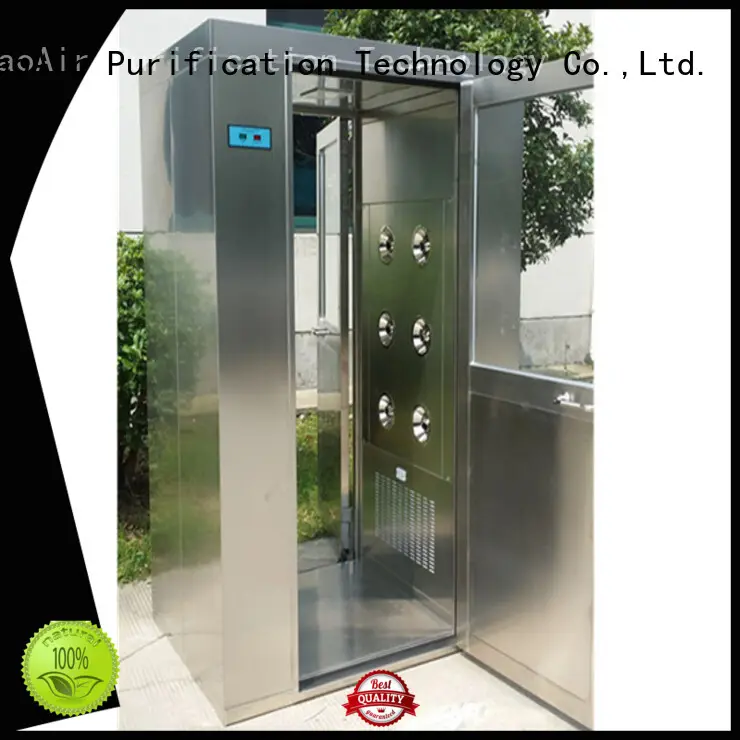

 Explosion-Proof Air Showers

Product Features：

         Air shower electric control system is explosion-proof

        Big air blowing fan is explosion-proof

         Purification light is explosion –Proof

         External Material: stainless steel304 (t=1.0) or steel with power coated

         Inside Material: stainless steel304 (t=1.0)

         External size: 1600*1000*2180mm

         Internal size: 800*930*1910mm

        Sus nozzle: 16pcs

         Blowing way: 3 side (left, right and top)

         Air speed: more than 25m/s

Introduce:

Explosion-proof air shower rooms are widely used in enterprises that require high purification produce flammable and explosive materials, such as refineries, cutting-edge weapons producers, military enterprises, and aerospace industries.

As used in the explosive industry and the use of volatile goods, enterprises must take into account the product features and safety of the customer workshop in the design of explosion-proof air shower rooms. All parts of the explosion-proof air shower room are all used with explosion-proof electrical appliances and lines to avoid the explosion of combustible gas and equipment in the customer's workshop.



Products Parameter：

MODEL		HA-AS1600P1	HA-AS1600P2	HA-AS1600P3
External size (mm) (W*D*H)		1600x1000x2180mm	1600x2000x2180mm	1600x3000x2180mm
Work zone (mm) (W*D*H)		800x930x1910mm	800x1930x1910mm	800x2930x1910mm
Persons per cycle		1-2 person	2-4 person	3-6 person
Material （Option）		1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3:External is steel with power coated,   Internal is SUS304(T=1.0/1.2/1.5mm) 4:External is steel with power coated.   Internal is SUS201(T=1.0/1.2/1.5mm)
Control system		1: Control system with LED display for   the shower time. 2: The shower time from 0-99second.   (Adjustable) 3: Infrared ray inductor for inside   personal shower automatic. 4: Three side blowing with Human voice   prompt system. 5: The Air shower electric control system   ,big blowing fan and purification  light is explosion –Proof 6: with CE remark.
The power of fan		380V/50HZ/0.75KW      (2   set)	380V/50HZ/0.75KW     (4 sets)	380V/50HZ/0.75KW (6sets)
Air flow of fan(m3/h)		1500	1500	1500
Fan run (r/min)		2800	2800	2800
Nozzle in stain less steel		16 pcs	32 pcs	48pcs
Wind speed(m/s)		>25m/s
Noise level(dB)		<75dB
HEPA FILTER	Size(mm)	630X630X80mm (2 sets)	630X630X80mm       (4 sets)	630X630X80mm (6 sets)
	Efficiency (%)	99.995% @ 0.3um mini-pleats HEPA Air Filter
	Air velocity	1000(m3/h)
	Initial resistance(pa)	<180pa
Pre-filter	Size(mm)	775x380x17	775x380x17	775x380x17
	Efficiency (%)	75% @ 0.5um	75% @ 0.5um	75% @ 0.5um
		G3	G3	G3
	resistance(pa)	<30 Pa	<30Pa	<30 Pa
parameter	Power supply	380v/50HZ 3P	380v/50HZ 3P	380v/50HZ 3P
	Net power(kw)	1.5 kw	3kw	4.5   kw
packing size   (mm)		1750x1200x2250mm	1750x2200x2250mm	1750x3200x2250mm
Packing   material		Standard Export Poly wood Packing(Fumigant free material)
Weigh		320kgs	650kgs	960kgs

Explosion -Proof Light :

Explostion -Proof Fan:

Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.
