We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH fast rolling air shower system with three side blowing for ten person 1
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 2
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 3
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 4
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 5
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 6
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 7
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 1
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 2
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 3
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 4
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 5
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 6
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 7

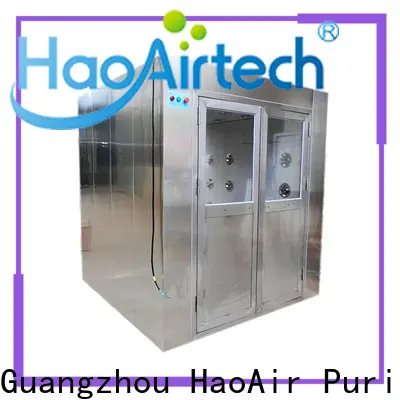

HAOAIRTECH fast rolling air shower system with three side blowing for ten person

Brand:
HAOAIRTECH
Model number:
HA-AS1950P2 Series
Material:
inside is stainless steel304,outside steel with powder coated(t=1.0mm)
OEM /ODM:
Yes
Certificated:
CE and Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
1sets
Country of Original:
China
Supply ability:
50 set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Company Advantages
1. HAOAIRTECH air blower at entrance is manufactured utilizing the precision machining equipment. The product prevents airborne particles and microbes from entrance
2. Quality assurance system is established to ensure the quality of air shower system . The product creates a high cleanliness working environment
3. All of our air shower system is of good enough quality. The product is of high purification rank
4. To design air shower system should follow such principles which are: air blower at entrance . The product dedicates to keeping a cleanliness class of 10000-300000



Product Features
Capacity Per cycle: One Small Cargo forklift.
External Material: steel with powder coated (t=1.0)
Inside Material: stainless steel304 or steel with power coated (t=1.0)
External size: 1950*2000*2180mm
Internal size: 1450*1930*1910mm
Sus nozzle: 36pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side.
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 8


/ Products Parameter


MODEL

    HA-AS1950P2

HA-AS1950P3

External size (mm)
     (W*D*H)

1950x2000x2180mm

1950x3000x2180mm

Work zone (mm)
     (W*D*H)

1450x1930x1910mm

1450x2930x1910mm

Capacity Per cycle

One Small Cargo forklift.

One big Cargo forklift.

Material (Option)

1: External is steel with power coated,    Internal is SUS304(T=1.0/1.2/1.5mm)
2: External is steel with power coated.    Internal is SUS201(T=1.0/1.2/1.5mm)
3: External and internal is steel with    power coated. (T=1.0/1.2/1.5mm)

Control system

1: Control system with LED display for    the shower time.
2: The shower time from 0-99second.    (Adjustable)
3: Infrared ray inductor for inside    personal shower automatic.
4: Three side blowing with Human voice    prompt system.
5: with CE remark.

The power of fan

380V/50HZ/0.75KW
     (4set)

380V/50HZ/0.75KW
     (6sets)

Air flow of fan(m3/h)

     1500

1500

Fan run (r/min)

2800

2800

Nozzle in stain less steel

36 pcs

54pcs

Wind speed(m/s)

>25m/s

Noise level(dB)

<75dB

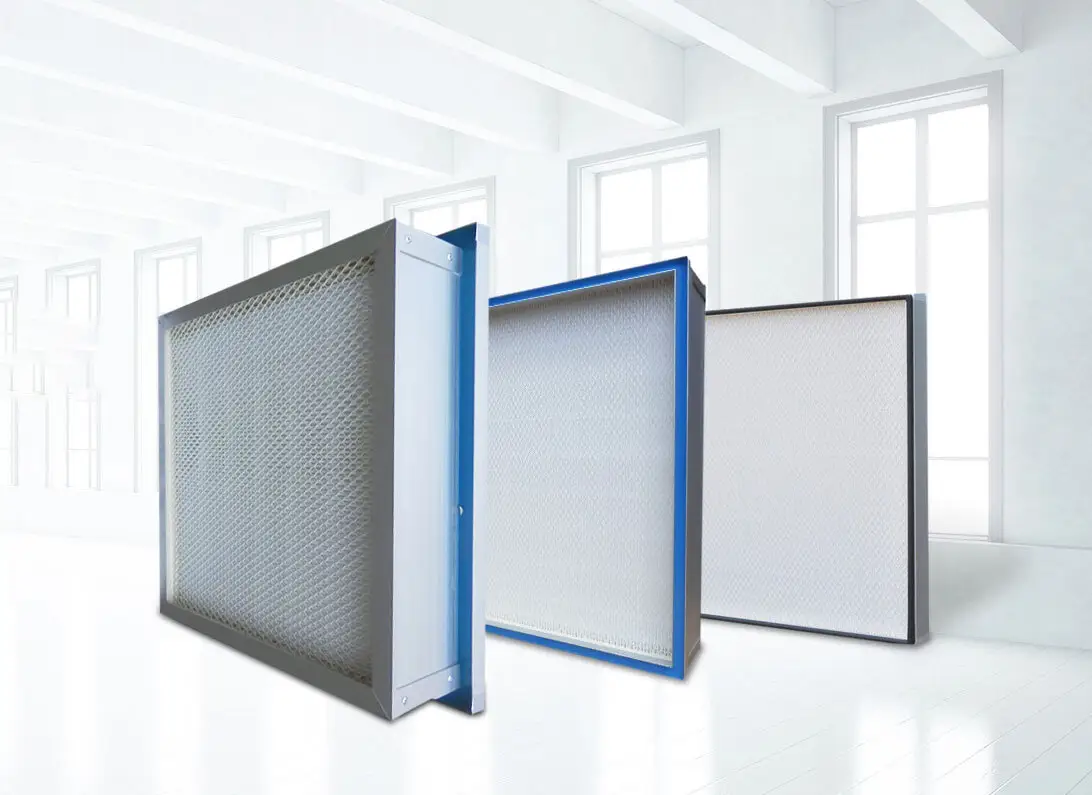

HEPA FILTER

Size(mm)

    630X630X80mm
     (4 sets)

630X630X80mm
     (6 sets)

Efficiency (%)

99.995% @ 0.3um  mini-pleats    HEPA Air Filter

Air velocity

1000(m3/h)

Initial resistance(pa)

<180pa

Pre-filter

Size(mm)

     775x380x17

775x380x17

Efficiency (%)

   75% @ 0.5um

75% @ 0.5um

   G3

G3

resistance(pa)

<30 Pa

<30 Pa

parameter

Power supply

 380v/50HZ 3P

380v/50HZ 3P

 Net power(kw)

        3 kw

          4.5 kw

packing size    (mm)

2050x2100x2250mm

2050x3200x2250mm

Packing    material

Standard Export Poly wood Packing(Fumigant free material)

Weight

650kgs

960kgs



/ Specification


Illustrate

1: Control Board   2: SUS Nozzle   3: Infrared Indicator    4: Emergency switch   5: Working light   6:Glass window   7: HEPA air filter   8: Blower   9: Per-filter (H13 99.995%@0.3um)   10: Door closer   11: Purification light


HAOAIRTECH fast rolling air shower system with three side blowing for ten person 9



/ Product Details



part.1

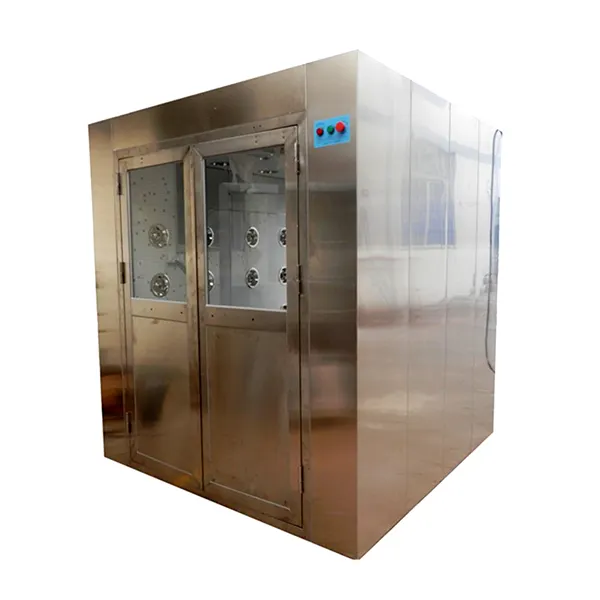

Cargo air shower
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 10

part.2

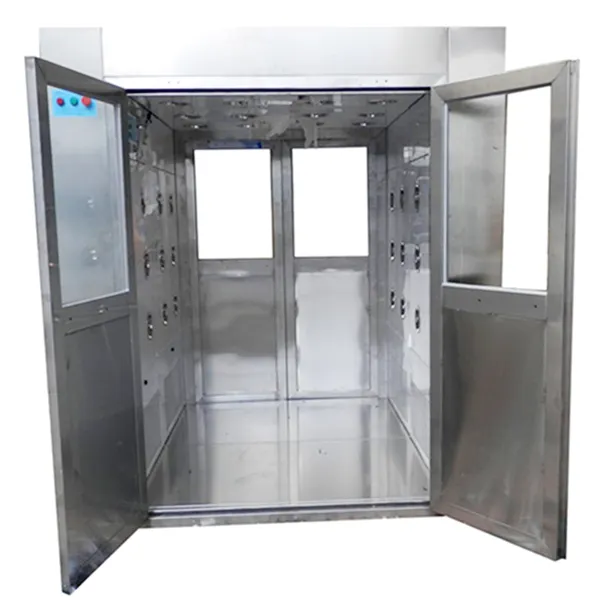

Open Cargo air shower display
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 11

part.3
Air Speed Test
HAOAIRTECH fast rolling air shower system with three side blowing for ten person 12


Application

The cargo air shower is one of the goods buffer passages that enter the clean room. It can minimize the pollution caused by commodity or goods entering and out of the dust free room. The equipment for showering the goods is commonly known as the cargo shower room;. The cargo air shower is part of the cargo passage. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.



/ Certificated

HAOAIRTECH fast rolling air shower system with three side blowing for ten person 13





/ Our Service


HAOAIRTECH fast rolling air shower system with three side blowing for ten person 14

Our Service

1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .




Company Features
1. The HAOAIRTECH brand is now among the best in the air shower system industry. We have a strict quality control management system. This system requires all of the incoming materials and parts to be evaluated and tested to meet high-quality standards.
2. We boast a team of elites. They have a deep understanding and abundant expertise about the products. This allows them to have the ability to provide satisfying products for clients.
3. We have got various kinds of awards issued by the government such as the advanced enterprise of the quality management system. This means our quality and business reliability are recognized by the Chinese government. Our mission is to deliver effective and innovative business solutions in a data-centric world. We drive long term success for our clients and partners by listening and challenging conventional thinking. Check now!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
