HAOAIRTECH fast rolling air shower system with three side blowing for pallet cargo

Company Advantages
1. HAOAIRTECH air shower system is fabricated selecting high quality raw materials.
2. The product is highly resistant to bacteria or mold. A kind of mold-proof and antiseptic agent is added to its raw materials by dipping method during its preliminary stage.
3. This product has so many advantages and has a wide range of market applications.
4. The product, available at such a competitive price, is widely used in the market.

Introduction:
Haoair Air Shower are an effective solution to reduce or even eliminate this type of contamination in order to protect the classification of the controlled enviroment.

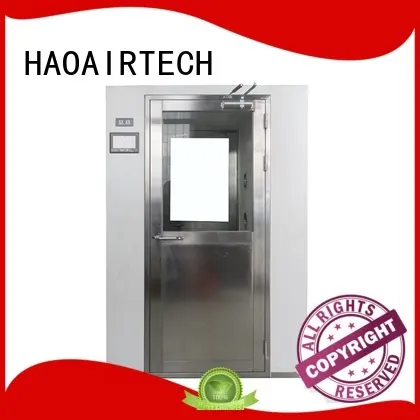

Vertical Air Shower is a cabinet type air shower designed to eliminate the particle contamination of the external surfaces of personnel and materials entering into controlled areas.

Top Side Vertical Flow Air Shower General Features:

1.Two doors with tempered safety glass.
2.Door opening direction adjustable to the room requirements.
3.Indication of cycle running.
4.Remaining cycle time.
5.Cycle time adjustable by Administrator from 0-99 seconds (other values can be programmed at the factory).
6.Alarms for blower, ventilation system, clogged filter, entry door open, exit door open, etc.
7.Fully automatic operation with programmable microprocessor to control all functions of the shower.
8.Microprocessor control to differentiate between entering and leaving cycles.
9.LED state indication for doors and shower cycle.
10.Full blown air filtration through 2 mechanical filtration stages with G4 pre-filter and ultra-filtration by HEPA H14 absolute filters.

The air shower is approval by CE and RoHS certificate.
Customer’s design is available.

Top Side Vertical Flow Air Shower Specification:

Top Side Vertical Flow Air Shower HA-AS1400V Series
Model		HA-AS1400V1	HA-AS1400V2	HA-AS1400V3
Outer Si(mm) (WXDXH)		1400x1000x2180	1400x2000x2180	1400x3000x2180
Inner Size(mm)(WXDXH)		800x930x1910	800x1930x1910	800x2930x1910
Persons per cycle		1-2 person	2-4 person	3-6 person
Air shower duration		Factory set at 15 seconds (0-99 seconds adjustable)
Material		Coldrolled Steel with Baked Painting or Stainless steel 304/316
Fan consumption		1.1KWX1set	1.1KWX2sets	1.1KWX3sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		16 pcs	32 pcs	48 pcs
Wind speed(m/s)		25-30m/s
Noise level(dB)		<62dB
LED Fluorescent Lamp		20wx1	20wx2	20wx3
HEPA Filter	Size(mm)	595X595X80mm(mini-pleats HEPA filter)
	Efficiency	99.995%@0.3um
	Resistance	<220pa
Pre-filter	Size(mm)	785x385x21mm
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Power supply		380V/50Hz

Top Side Vertical Flow Air Shower Compared With Traditional Air Shower:

Top Side Vertical Flow Air Shower Application:
