We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

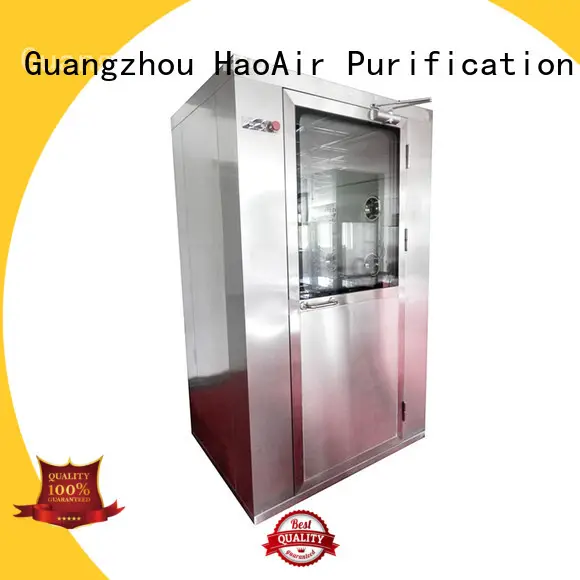

HAOAIRTECH explosion proof clean room manufacturers with top side air flow for ten person
- HaoAir provides professional, diversified and international services for customers.
1. HAOAIRTECH air shower nozzle leaves a lasting impression on the industry with the unique and innovative design.
2. Our professional team adopts a perfect quality testing system to guarantee the quality of this product.
3. The product is tested to meet the quality standards as per the customer demands.
4. It can create an attractive focal point for any venue. It is quite unique as a building form, so it quickly forms a visual focus of attention.
5. Consumers will not find any loose threads or inferior sutures on this product. All the connection parts are professional.
Inside Material: stainless steel304 (t=1.0)
External size: 1300*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side
MODEL | HA-AS1300P1 | HA-AS1300P2 | HA-AS1300P3 | |
External size (mm) | 1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(m3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Control Board 2: Nozzle 3: Infrared Indicator 4: Per-filter 5: Power indicator 6: Emergency switch 7: Working light 8: HEPA air filter (H13 99.995%@0.3um) 9: Door, 10: Fan 11: Door Closer 12: purification light
Application
Clean room air shower products are a kind of local cleaning equipment with strong versatility. They are installed between clean rooms and non clean rooms. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.
/ Certificated
Our Service:
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a modern manufacturer of clean room manufacturers .
2. All HAOAIRTECH products are produced under the supervision of our quality control team and the quality of the products can be guaranteed.
3. We will pro-actively corporate with our suppliers complying with ethical practices and help our customers find sustainable solutions to critical issues. In our business, we prioritize product innovation. We will strengthen the R&D capability and closely collaborate with clients on product development projects that are more targeted. We think highly of sustainability. We implement year-round sustainability initiatives. And we operate businesses safely, using a renewable resource that must be managed responsibly. Sustainability is always the goal for us to pursue. We hope to upgrade the production process or change production methods so as to make our business quickly gear to green production.
