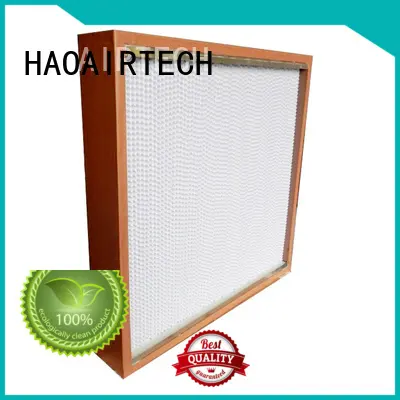

HAOAIRTECH disposable custom hepa filter with flanger for dust colletor hospital

Company Advantages
1. HAOAIRTECH custom hepa filter is professionally designed. The design is carried out by our designers who use interactive software to virtually construct the layout of this product. Made of stainless steel SUS304, it is beautiful and durable
2. The product caters to the market requirements and is going to be more widely used in the market. It acts as an indispensable part in a dustfree production line
3. High stability and reliability are the obvious characteristics of the product. It can withstand daily heavy use and is not damaged by a blackout or other emergencies. The product stands out for its high efficiency for purification
4. The product is 100% scratch-proof. It is rigorously tested against abrasion and scratching, guaranteeing to keep the same brilliance of finish. The product dedicates to keeping a cleanliness class of 10000-300000
5. The product is highly resistant to corrosive environments, and it's able to be used in the non-magnetic application fields. With the shell galvanized, the product is crack-resistant and wear-resistant

Heap air filter with paper clapboard adopt the special design to keep the space between pleated layers by clapboard. Paper spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media    spacer	Hot melt
Frame thickness    (mm)	120/150/220
Clapboard	120g/m paper
Efficiency	99.99%-99.999%@0.3um
Max    Temperature	80℃
Max    Humidity	80%

Dimension(mm)      (W*H*D)	Rate    Air Flow (m3/h)	Media  Area (m2)	Dust  Holding (g)	Rate primary Resistance(Pa) (H13-H14)	Finally Resistance   (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. never neglects the importance of technology to improve quality for custom hepa filter .
2. 'High quality, high prestige, keeping time' is the company's business management of Guangzhou HaoAir Purification Technology Co.,Ltd.. Contact us!
