We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

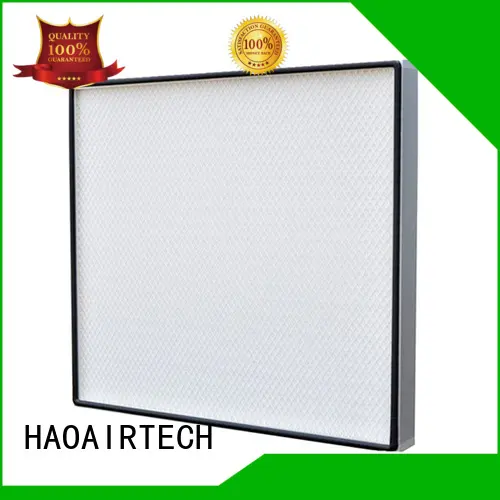

HAOAIRTECH custom hepa filter with dop port for electronic industry
- Based on the principle of 'customer first', HaoAir is committed to providing quality and complete service for customers.
1. The smooth operation of true hepa filter ensures the effective use of custom hepa filter .
2. The implementation of the quality control system ensures the product to be defect-free.
3. By establishing normal management rules, HAOAIRTECH can strictly guarantee the quality of custom hepa filter .
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation
Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
While color metal screen to protect the filtration media without any damage.
Light weight and easy to install
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats ULPA air filter
Filtration Efficiency: U15 ,U16, U17.(EN1822). 99.9995%-99.99995%@0.12um
Applied to the terminal filtration of the air-condition filtration system
Media | America HV Super glass fibre |
Frame | AL/GL/SUS201/304 frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 46/50/69/80/90/96/120 |
Screen | Metal screen |
Efficiency | >99.9995%-99.99995%@0.12um |
Max Temperature | 70℃ |
Max Humidity | 100% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary | Finally | Efficiency |
320X320X50 | 120 | 2 | 130 |
<200Pa |
400-600pa |
U15-U17 |
484X484X50 | 300 | 4.5 | 300 | |||
610X610X50 | 500 | 7.1 | 428 | |||
915X610X50 | 730 | 10.6 | 635 | |||
1220X610X50 | 980 | 14 | 842 | |||
305X305X69 | 150 | 2.9 | 173 | |||
484X484X69 | 400 | 6.5 | 393 | |||
610X610X69 | 600 | 10.3 | 622 | |||
915X610X69 | 900 | 15.4 | 923 | |||
1220X610X69 | 1200 | 20.4 | 1224 |
Application
Mini-Pleats ULPA air filter suitable for air cleaner ,dust colletor hospital, electronic industry ,food,Pharmaceutical ,bio-engineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is widely known as a Chinese leading manufacturer for custom hepa filter .
2. The professional technician's resources have become the key factor in our success. Those technicians are well-cultivated in terms of industry know-how and technical knowledge, which enables them to design and produce valuable and market-oriented products.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. aims to take the lead in the field of true hepa filter through continuous innovation. Check it! We always keep in mind technological innovations to achieve the long-term development of air purifiers hepa filter . Check it!
