HAOAIRTECH air shower system with three side blowing for forklift

Company Advantages
1. The check for HAOAIRTECH air shower tunnel is strictly executed. All its components are thoroughly inspected for dimension specification and chemical composition.
2. air shower system features air shower tunnel that dramatically capture the eyes of users.
3. The efficiency and costs of this product are optimized and minimized.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. undertakes to ensure that its production complies with the quality assurance system.



Introduction:
Air Showers is an equipment providing cleanliness for personnel, equipment and supply carts.
Nozzles jet out high-velocity and filtered air to remove stubborn particles from surfaces.

Configuration Features:
1.Microprocessor control system.
2.LCD display.
3.The air shower room duration time 0-99s adjustable.
4.Emergency button for emergency situation.
5.99.99%@0.3μm, efficiency can reach 99.99%@0.3μm with Pre filter and HEPA filter.
6.Unified specifications, easy to modify, can be customized per request.

Application:

Air shower is widely used in LCD and opto electronic display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy, auto glass and precision parts.

The air shower is approval by CE and RoHS certificate.
Customer’s design is available.

Air shower specification:

Clean room air shower HA-AS1200P Series
Model		HA-AS1200P1	HA-AS1200P2	HA-AS1200P3
Outer Si(mm) (WXDXH)		1200x1000x2180	1200x2000x2180	1200x3000x2180
Inner Size(mm)(WXDXH)		800x930x1910	800x1930x1910	800x2930x1910
Persons per cycle		1-2 person	2-4 person	3-6 person
Air shower duration		Factory set at 15 seconds (0-99 seconds adjustable)
Material		Coldrolled Steel with Baked Painting or Stainless steel 304/316
Fan consumption		0.75KWX1 set	0.75KWX2 sets	0.75KWX3sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		12 pcs	24 pcs	36pcs
Wind speed(m/s)		> 22-27m/s
Noise level(dB)		<62dB
LED Fluorescent Lamp		20wx1	20wx2	20wx3
HEPA Filter	Size(mm)	630X630X69mm
	Efficiency	99.99%@0.3um
	Resistance	<220pa
Pre-filter	Size(mm)	785x385x21
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Power supply		380V/50Hz

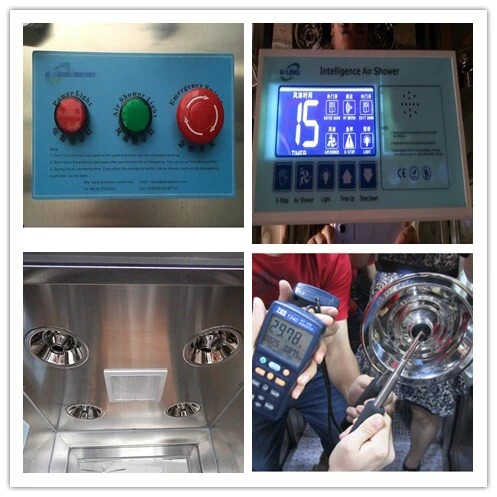

Air shower room product details:

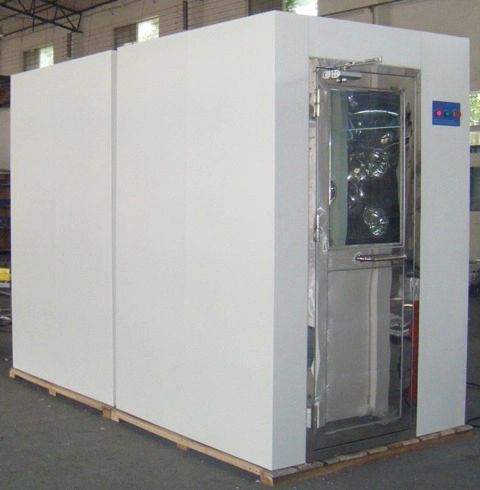

Customized clean room air shower photos:
