chemical filter high quality for air odor HAOAIRTECH
- HaoAir abides by the service principle of 'customers from afar should be treated as distinguished guests'. We continuously improve the service model to provide quality services for customers.
1. HAOAIRTECH v bank filter has been paid 100% attention from the internal structure to the appearance.
2. The product has undergone rigorous testing during the trial production phase.
3. In accordance with ISO9000, a perfect manufacturing management system and quality control system have been established in Guangzhou HaoAir Purification Technology Co.,Ltd..
1. Filtration efficiency: 99.5%. Dust of transmittance is only 0.1% - 0.3%.
2. Structure reasonable compact, can be installed on any position, not restricted by vehicle parts layout.
3. Maintenance does not consume fuel, can save a lot of materials such as cotton, felt and metal materials.
4. High quality and low cost.
| Frame | Size | NO of Hole | Material |
| F1 | 610X610X70 | 16 | GL |
| F2 | 610X305X70 | 8 | |
| F3 | 305X305X70 | 4 | |
| F4 | 610X610X70 | 16 | SUS201/304 |
| F5 | 610X305X70 | 8 | |
| F6 | 305X305X70 | 4 |

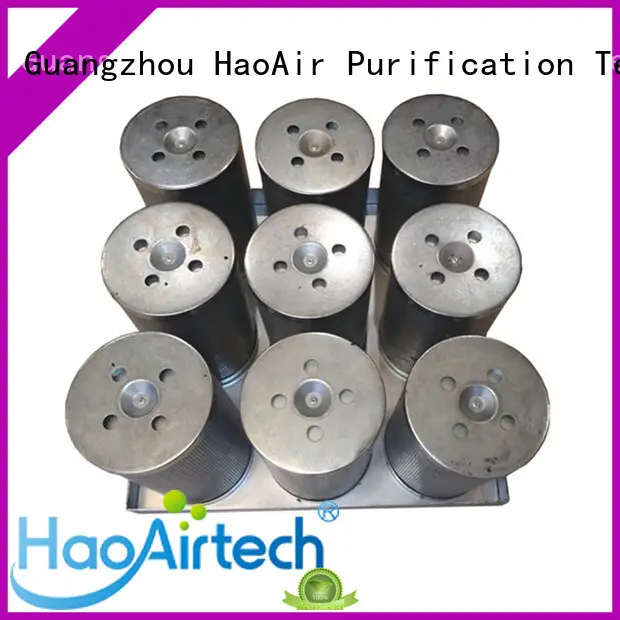

| Cylinder Model | material | |
| C1 | GL | ￠145 X￠87X300 |
| C2 | ￠145 X￠87X450 | |
| C3 | ￠145 X￠87X600 | |
| C4 | SUS | ￠145 X￠87X300 |
| C5 | ￠145 X￠87X450 | |
| C6 | ￠145 X￠87X600 |
| Model | Cylinder Dimensions(mm) | Modular Dimensions | NO of Cylinder | Charcoal Content(g) | Removal Efficecy (%) | Pressure Drop (pa) | Air Flow (m3/h) | ||
| ￠145x330 | W(mm) | H(mm) | D+70(mm) | 95% | |||||
| HAT-330-16 | 610 | 610 | 403 | 16 | 24 | 135 | 3600 | ||
| HAT-330-12 | 508 | 610 | 12 | 18 | 135 | 2700 | |||
| HAT-330-8 | 305 | 610 | 8 | 12 | 135 | 1800 | |||
| HAT-330-4 | 305 | 305 | 4 | 6 | 135 | 900 | |||
| HAT-450-16 | 610 | 610 | 478 | 16 | 28.8 | 110 | 3600 | ||
| HAT-450-12 | 508 | 610 | 12 | 21.6 | 110 | 2700 | |||
| HAT-450-8 | 305 | 610 | 8 | 14.4 | 110 | 1800 | |||
| HAT-450-4 | 305 | 305 | 4 | 7.2 | 110 | 900 | |||
| ￠145x480 | W(mm) | H(mm) | D+70(mm) | 95% | |||||
| HAT-480-16 | 610 | 610 | 553 | 16 | 35.2 | 90 | 3600 | ||
| HAT-480-12 | 508 | 610 | 12 | 26.4 | 90 | 2700 | |||
| HAT-480-8 | 305 | 610 | 8 | 17.6 | 90 | 1800 | |||
| HAT-480-4 | 305 | 305 | 4 | 8.8 | 90 | 900 | |||
| ￠145x600 | W(mm) | H(mm) | D+70(mm) | 95% | |||||
| HAT-600-16 | 610 | 610 | 673 | 16 | 43.2 | 70 | 3600 | ||
| HAT-600-12 | 508 | 610 | 12 | 32.4 | 70 | 2700 | |||
| HAT-600-8 | 305 | 610 | 8 | 21.6 | 70 | 1800 | |||
| HAT-600-4 | 305 | 305 | 4 | 10.8 | 70 | 900 | |||
Customer size is available
Exclusively designed for commercial or industrial central air conditioning and central ventilation system, eliminate the odor (smell) and harmful gases in air.
A variety of special activated charcoal materials can be provided according to the actual needs, such as elimination of acid gas, alkaline gas, formaldehyde, mercury vapor as well as radioactive gases.
Install Frame: Electrostatic spraying of cold rolled steel or stainless steel.
Carbon tube material: galvanized steel or stainless steel, the metal shell of the carton tube reusable
Mainly used in air filter.Filter dust ,air-condition and sand in the air.
2. Filtrate solid particles,colloidal substances .
3. Effectively control the pollution.
4.Guarantee/insure the system working normally.
5.Can provides framework,combined use according to the treatment amount of gas
