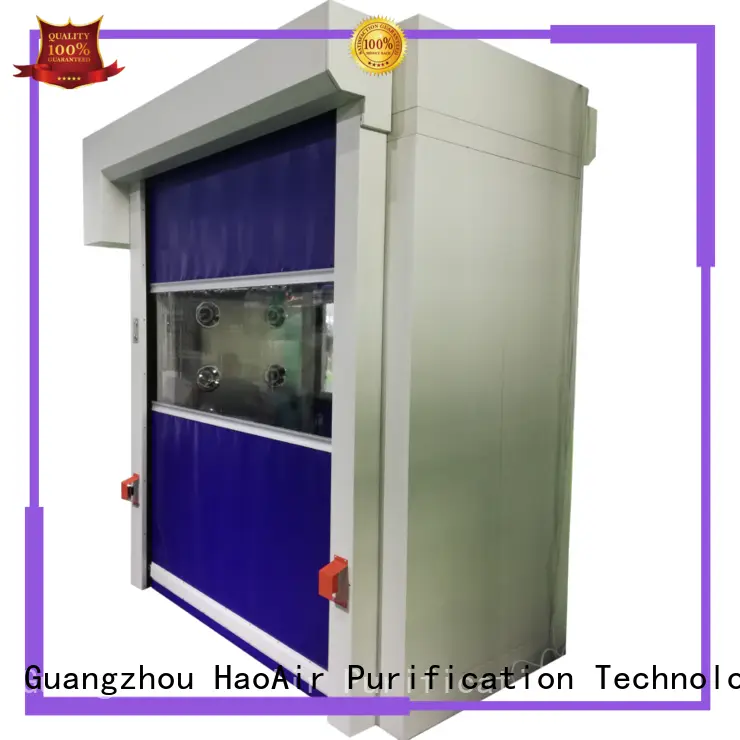

air shower system with top side air flow for pallet cargo HAOAIRTECH

Company Advantages
1. HAOAIRTECH air shower system meets the strictest fire safety standards. It has been tested by the third-party organization which holds the highest fire standards.
2. The product is not likely to accumulate too much heat. Its powerful cooling system is designed to maintain the proper temperature of mechanical parts, allowing it to have good heat dissipation.
3. The product is distinguished by earthquake resistance. Made of heavy-duty materials and designed with strong construction, it can resist any form of sharp vibrations.
4. The product can significantly liberate people from heavy-duty and monotonous work, allowing people to spend time focusing on other important tasks.

Introduction

  Fast rolling door  air shower is a kind of local purifying equipment,fixed on the partition between clean room and unclean room.

  It is used for shower and removing dust when personnel or objects entring into clean area.

  Effectively reduce dust source from entring into clean area after used,and keep clean area in normal working state.

  Shower way:single-side shower,double-side shower,three-side shower and top shower.

  This air shower unit combines the conveyor belt with the air shower to make cargo transportation more convenient.

Characters

Photoelectricity control,automatic shower.
Circulated air design keeps shower area clean in non-shower state.
Double doors adopt electric interlocking to force shower;double doors may be made as automatic movable door.
Made as negative pressure and anti-exploding air shower according to users' requirment.
Equipped with the device to remove static.
Carry on air brake,cushion type and other particular design,manufacturing.

Products Parameter：

MODEL		HA-AS2300P2		HA-AS2300P3
External size (mm) (W*D*H)		2300x2000x2280mm		2300x3000x2280mm
Work zone (mm) (W*D*H)		1500x2000x1980mm		1500x3000x1980mm
Persons per cycle		One Small Cargo forklift.		One big Cargo forklift.
Material （Option）		1:External is steel with power coated,   Internal is SUS304(T=1.0/1.2/1.5mm) 2:External is steel with power coated.   Internal is SUS201(T=1.0/1.2/1.5mm)
Control system		1: Control system with LED display for   the shower time. 2: The shower time from 0-99second.   (Adjustable) 3: Infrared ray inductor for inside   personal shower automatic. 4: Three side blowing with Human voice   prompt system. 5: with CE remark.
Door		Automatic High Speed Rolling Door
The power of fan		380V/50HZ/0.75KW         (4 set)		380V/50HZ/0.75KW (6sets)
Air flow of fan(m3/h)		1500		1500
Fan run (r/min)		2800		2800
Nozzle in stain less steel		36 pcs		54 pcs
Wind speed(m/s)		>25m/s
Noise level(dB)		<75dB
HEPA FILTER	Size(mm)	630X630X80mm(4 sets)		630X630X80mm(6 sets)
	Efficiency (%)	99.995% @ 0.3um mini-pleats HEPA Air Filter
	Air velocity	1000(m3/h)
	Initial resistance(pa)	<180pa
Pre-filter	Size(mm)	775x380x17	775x380x17		775x380x17
	Efficiency (%)	75% @ 0.5um	75% @ 0.5um		75% @ 0.5um
		G3	G3		G3
	resistance(pa)	<30 Pa	<30Pa		<30 Pa
parameter	Power supply	380v/50HZ 3P	380v/50HZ 3P		380v/50HZ 3P
	Net power(kw)	1.5 kw	3kw		4.5   kw

 Fast Rollling Door Air Shower :



   Illustrate:



    1: Fast shutter motor      2:Air shower control board    3:SUS Nozzle       4: Infrared Ray Indicator          5A/B:Sensor for door open

    6: PVC Rolling Door      7:Big air volume motor            8: HEPA air filter(H13 99.995%@0.3um)                 9: per-filter

     10A/B: Sensor for door closer        11: Purification Light



Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards.

Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)
